Rourke Handbuilt Cycles
STOKE on TRENT - ENGLAND

ROURKE Stock frames and bikes

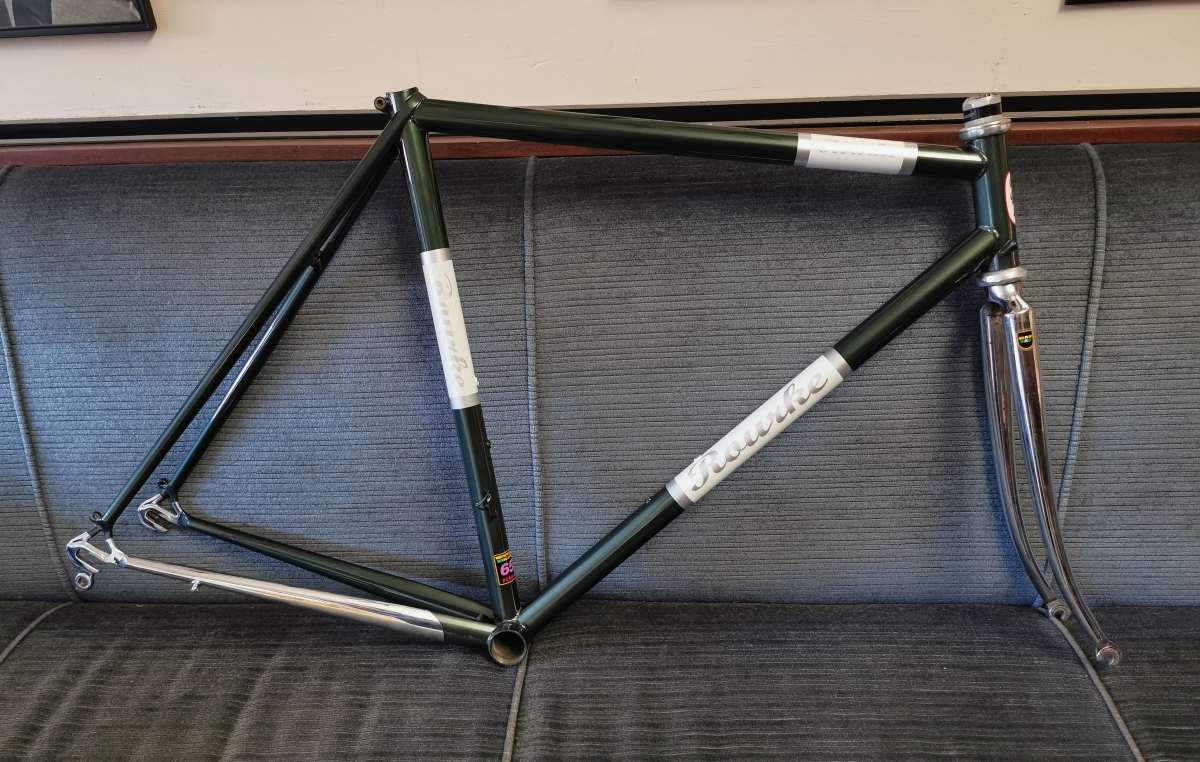

Rourke deda frame

Recently renovated Rourke Dedacciai Zero frame.

Seat Tube 500mm

Top Tube 550mm

Head Tube Length 120mm

Seat Angle 74 degrees

Head Angle 73 degrees

Price £400 o.n.o.

Requires 1" steerer tube forks. Still readily available from Tifosi and Columbus. Click here for frame drawing


.


Rourke_853_Bike

#5611 Reynolds 853 o/s frame Fully fillet brazed winter frame.

Seat Size 560mm

Top Tube 563mm

Head Tube Length 197mm (integrated headtube)

Seat Angle 73.5 degrees

Head Angle 73 degrees

Stand Over Height 32.5" (82.7cm)

Total Build Price £1325

Offer Price £999

Fast road mudguard equipped frame, for long drop brake calipers. Fully fillet brazed construction with integrated headtube cups and upgraded with stainless steel rear dropouts. Can be resprayed to your own design call for details. Click here for frame drawing


.


Rourke_853_Bike

5647 Reynolds 853 Road Sportive Frame.

Seat Size 485mm

Top Tube 540mm

Head Tube Length 157mm

Seat Angle 74 degrees

Head Angle 72.5 degrees

Stand Over Height 30.4" (77.3cm)

Total Build Price Frame and Forks £1433

Offer Price £1260

Fast comfortable road sportive frame. Fillet brazed head tube and seat joints tigged bottom bracket and upgraded with stainless steel rear dropouts. Can be resprayed to your own design call for details. Click here for frame drawing


.


Rourke_853_Bike

#5416 Reynolds 853 Pro Team Tubing

Seat Size 595mm

Top Tube 555mm

Head Tube Length 200mm

Seat Angle 73 degrees

Head Angle 72.5 degrees

Stand Over Height 33.5" (85cm)

Total Build Price £2627

Offer Price £1999

Fast road bike, finished with Ultegra 6800 series groupset compact crankset 11/32 cassette. Ritchey Carbon Comp forks, Cane creek headset, Fulcrum racing Quattro LG Wheels, Fizik finishing kit. Click here for frame drawing


.


931 frame flat bar roadbike

#5476 Reynolds 931 Stainless Road Frame or Flat Bar Road Bike

Seat Tube 596mm

Top Tube 615mm

Head Tube Length 165mm

Seat Angle 73 degrees

Head Angle 73 degrees

Stand over Height 83.4cm (32.8")

Price £950

Reynolds 931 Stainless road race frame with Super oversize tubing with traditional horizontal top tube. Quite a big frameset would suit rider's above 6'4" Would also be suitable for building as a flat bar road bike too. Click here for frame drawing


.


Rourke 853 mtb Bike

Rourke 26" MTB Frame #5059

Seat Size 560mm / 22"

Top Tube 650mm 25.6"

Head Tube Length 170mm

Seat Angle 74 degrees

Head Angle 72 Degrees

Suitable for 26" forks 80-100mm travel 1"1/8 steerer tube

Reynolds 853 tubing, international standard rear disc mounts, 135 quick release rear end , External cable routing for easy maintenance. Click here for frame drawing

Price £600 open to offers


.


953 frame

#5591 Rourke 953 Op Ovals Di2 frame

Seat Size 527mm

Top Tube 555mm

Head Tube Length 198mm

Seat Angle 73 degrees

Head Angle 73 degrees

Stack 611mm

Reach 369mm

Frame configuration £2095

Offer Price £1300

Frame has drillings for Di2 internal rear brake cable routing will suit all 1"1/8 forks. Name will be removed from top tube at no extra cost. Click here for frame drawing


.


Rourke Dedacciai Road frame

#4539 2nd Hand Rourke Dedacciai Zero Tubing

Seat Size 470mm

Top Tube 530mm

Head Tube Length 75mm

Seat Angle 74 degrees

Head Angle 73 degrees

Price £450

Comes with carbon road forks and headset with 40mm spacers Click here for frame drawing
